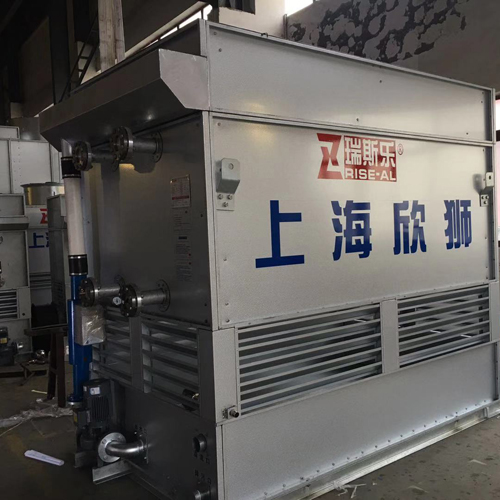

| RAL-Y-3100～3880外形尺寸和技术参数 | ||||||||||
| RAL/Y/3100～3880dimensions and technical parameiters | ||||||||||
| 型号 | 名义工况排热量 | 轴流风机 Axial fal | 循环水泵Water circul atng punp | 重量 Weight | ||||||
| heat reflection under | 台数 | 风量 | 功率 | 台数 | 流量 | 功率 | 运输 | 运行 | ||
| nomnal oper ating mobe | Air flow | POwer | Water fiow | POwer | ||||||
| m³/h | kw | m³/h | kw | Trasportion | Operting | |||||
| KW | qty | KG | KG | |||||||
| RAL-Y-3100 | 3100 | 3 | 3x100000 | 3x7.5 | 2 | 2x180 | 2x4.0 | 15810 | 26070 | |
| RAL-Y-3210 | 3210 | 3 | 3x100000 | 3x7.5 | 2 | 2x180 | 2x4.0 | 15890 | 26050 | |
| RAL-Y-3450 | 3450 | 3 | 3x120000 | 3x7.5 | 2 | 2x180 | 2x4.0 | 16720 | 26980 | |
| RAL-Y-3750 | 3750 | 3 | 3x140000 | 3x11 | 2 | 2x180 | 2x4.0 | 17850 | 28210 | |
| RAL-Y-3880 | 3880 | 3 | 3x140000 | 3x11 | 2 | 2x180 | 2x4.0 | 19200 | 29460 | |
| 型号 | 尺寸 Dimensions | 补水口 | 进气管 | 出液管 | 排污口 | 溢流口 | |||||||||
| A | B | C | D | E | F | G | H | J | Makeuppipe | Airinltpip | Wateroutlet | Discharg | Overflow | ||
| a | b | c | d | e | |||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | DN25 | DN￠80 | DN￠80 | DN￠50 | DN￠80 | ||
| RAL-Y-3100 | 7460 | 2750 | 1600 | 1948 | 850 | 1152 | 1729 | 4398 | 300 | DN25 | 4xDN￠80 | 4xDN￠80 | DN￠50 | DN￠80 | |
| RAL-Y-3210 | 7460 | 2750 | 1600 | 1948 | 850 | 1152 | 1729 | 4398 | 300 | DN25 | 4xDN￠80 | 4xDN￠80 | DN￠50 | DN￠80 | |
| RAL-Y-3450 | 7460 | 2750 | 1600 | 1948 | 850 | 1152 | 1729 | 4398 | 300 | DN25 | 4xDN￠80 | 4xDN￠80 | DN￠50 | DN￠80 | |
| RAL-Y-3750 | 7460 | 2750 | 1600 | 2186 | 900 | 1390 | 1729 | 4686 | 300 | DN25 | 4xDN￠80 | 4xDN￠80 | DN￠50 | DN￠80 | |
| RAL-Y-3880 | 7460 | 2750 | 1600 | 2186 | 900 | 1390 | 1729 | 4686 | 300 | DN25 | 4xDN￠80 | 4xDN￠80 | DN￠50 | DN￠80 | |
